The Best of Aero India 2021 (Part 3)

Zen Anti Drone System

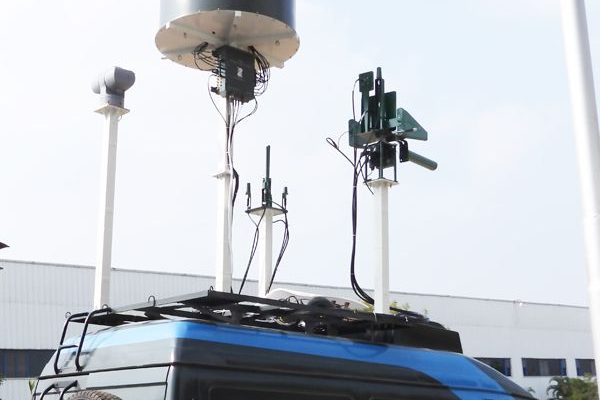

Vehicle Mounted Anti Drone System

Anti Drone System from Zen Technologies works on drone detection, Classification and tracking on passive surveillance, camera sensors and neutralization of the threat through jamming the Drone communication.

Zen Anti Drone System (ZADS) is a multi-layer multi sensor Architecture aimed at providing comprehensive security against drone attacks.

RF Based Drone detector (RFDD)

RFDD detects the drone using Radio Frequency (RF) communication between drone and Ground control center (GCC). This System is on continuous search mode on wide band of frequencies that are typically used by Drone and its GCC. Whenever a frequency of interest is identified, the system locks and monitors the signal. Based on the identified signal, system estimates the direction of Drone and its GCC. An array of receive antenna is used for estimation of direction of signal.
Video based Drone Identification & Tracking (VDIT)

The day and night camera sensors are mounted on an automatic servo-based positioning system. This system receives commands for position from RFDD. Once positioned in the direction of interest, captures video and images of drone. VDIT is capable of capturing and tracking video up to a range of 3 Km. Video feeds are given to software module and video processing algorithms in the software automatically confirm the presence of drone and imitate tracking.

Drone RF Jammer (DRFJ)

Drone RF Jammer (DRFJ) is capable to disable the link between GCC and Drone, by jamming simultaneously ISM bands, GNSS signals, mobile signal and any other intercepted frequencies. The frequencies detected by RFDD are automatically taken and jamming waveforms are generated and radiated using the directional antennas. The system also supports user configured frequency to carry out the jamming action. A provision to manually feed the jammer frequencies is also given.
Hard kill

Zen Anti Drone system is offered with hard kill options. Kinetics based kill and a Net based drone catcher are the two options available in hard kill. Kinetic based neutralization is supplied with a gun which can auto align to the target and fire bullets against the target to destroy the same physically. In order to capture the drone and land it at a safe place, net-based drone capture option can be employed. For this option, a dedicated drone with a hanging net will be launched to capture the rogue drone. This option is suitable for small rogue drones carrying potentially damaging explosives.
